Kelly piles

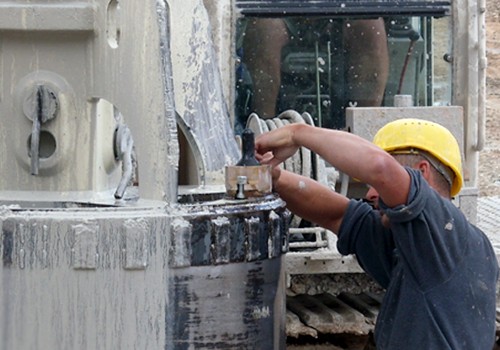

With Kelly piles, soil excavation is carried out with the drilling tool (short auger, drilling bucket ...) mounted at the tip of a telescopic bar. When tubing is used, the tube is clamped using the hydraulic system of the drilling equipment, and it is lowered by rotating simultaneously in the borehole.



The concrete is poured through a hopper pipe slid into the casing to the final depth reached, the tube being the last step.

Slider

Parameters

On-site instrumentation measures and records in a simple, reliable and precise way:

  • The inclination of the mast
  • Drilling depth and speed
  • Torque and rotation speed
  • The deviation and the pressure of the concrete
  • The thrust pressure

Electronics

The device suitable for measuring and recording Kelly piles:

  • The DIALOG MX

Learn more

Sensors

The recording of the various parameters and the control are ensured by specific sensors:

  • The P82 for the depth
  • The VR28 for rotational speed
  •  The C16 400 for thrust pressure and torque
  • The IGH1620 for inclination
  • The PRAD for the deviation and the pressure of the concrete at the bottom

Learn more

Technical diagram and results layout

Hover the diagram for more details
